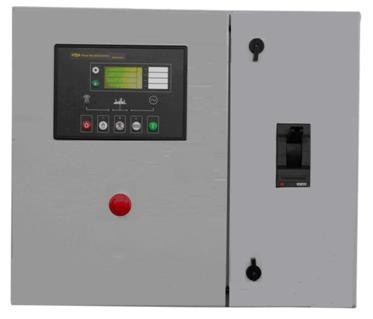

GLOBAL POWEREX AUTOMATIC CONTROL PANEL SET MOUNTED



base_panel



: The panel is consisted of.

..................................................................................

Automatic Engine Control Module, The module is used to automatically

 × 1

Start and stop the engine, indicating the operational status and fault conditions.

Automatically shutting down the engine and indicating the engine failure by means.

Of a graphical LCD display and a flashing LED on the front panel. Selected.

Operational timers and alarms can be altered by the customer.H.

Metering.

The module provides engine and electrical metering facilities via the LCD display with the following .instrumentation displays, accessed via the SCROLL push-button: H

Generator Volts L1-N, L2-N, L3-N                       Generator Volts L1-L2, L2-L3, L3-L1.

Generator Amps L1, L2, L3                                 Generator Frequency Hz.

Engine Speed RPM                                              Engine Oil Pressure (PSI & Bar) H.

Engine Temperature (˚C & ˚F)                            Plant Battery Volts.

Engine Hours Run.

: Multiple alarm channels are provided to monitor for the following conditions.

Under/Over speed                                              - Charge alternator failure-.

Emergency stop                                                  - Low oil pressure-.

High engine temperature                                    - Fail to start-.

Fail to come to rest                                             - Loss of speed sensing signal-.
......................................................................................................................

three pole Molded Case Circuit Breaker

 × 1

Emergency stop bottom

 × 1
