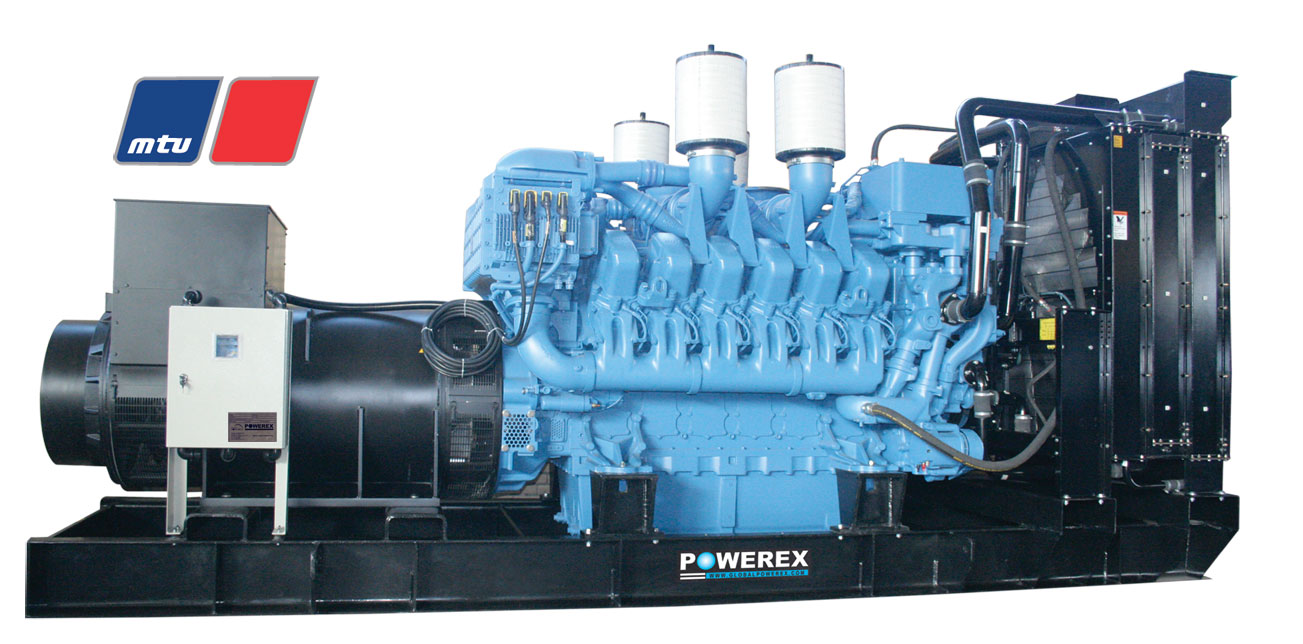

THE GLOBAL POWEREX RANGE OF MTU POWERED DIESEL GENERATING SETS
Ratings and Approximate unpacked dimensions
........Model........ .........Engine......... Prime Standby Fuel Cons. ..Length(mm).. ..Width(mm).. ..Height(mm).. Net. Wt. (Kg) Packed Vol. m3 ...KVA... ...KW... ...KVA... KW GPPMTU450 10V1600G10F 450.0 360.0 -------- -------- 83.6 3350 1400 1600 3260 11.0 GPPMTU500S 10V1600G70F -------- -------- 511.0 408.8 93.8 3350 1400 1600 3340 11.0 GPPMT500 10V1600G20F 500.0 400.0 -------- -------- 93.0 3350 1400 1600 3420 11.0 GPPMT565S 10V1600G80F -------- -------- 565.0 452.0 105.2 3350 1400 1600 3480 11.0 GPPMT600 (3) 12V1600G10F/70F 600 480.0 636.0 508.8 118.2 3450 1450 1700 3880 12.0 GPPMT661(3) 12V1600G20F/80F 661.0 528.8 710.0 538.0 133 3550 1450 1700 4050 12.0 GPPMTU647 12V2000G25 647.0 517.6 716.0 572.8 133.4 3850 1580 1850 5200 13.9 GPPMTU796 12V2000G65 796.0 636.8 882.0 705.6 147.6 4000 1580 2000 6000 14.4 GPPMTU910 16V2000G25 910.0 728.0 1018 814.4 170.0 4400 1700 2040 6500 16.9 GPPMTU1030 16V2000G65 1010.0 808.0 1108.0 886.4 189.2 4500 1700 2270 6700 21.5 GPPMTU1110 18V2000G65 1110.0 888.0 1180.0 944.0 213.5 4650 1700 2270 6900 21.5 GPPMTU1615 12V4000G23 1615.0 1292.0 1831.0 1464.8 278.7 5500 1750 2550 12500 24.5 GPPMTU1833 12V4000G63 1833.0 1466.4 2046.0 1636.8 309.3 5500 1750 2550 13000 24.5 GPPMTU2060 16V4000G23 2060.0 1648.0 2257.0 1805.6 320.3 5500 1750 2550 12500 26.7 GPPMTU2269 16V4000G63 2269.0 1815.2 2537.5 2030.0 332.3 5500 1750 2550 13000 26.7 GPPMTU2544 20V4000G23 2544.0 2035.2 2808.0 2246.4 390.0 CONSULT US GPPMTU2820 20V4000G63 2820.0 2256.0 3107.0 2485.6 420.0 CONSULT US GPPMTU3100 20V4000G63L 3075.0 2460.0 3320.0 2656.0 420.0 CONSULT US
......
Notes: H
F1. Rating based on: 380V 3ph 50Hz power factor 0.8 and in accordance with ISO8528-1 and ISO3046, BS5514 and DIN6271 Condition. H
F2. Fuel consumption figures are in liters per hour at 100% full load.H
F3. For the standby rating the engine model number ends with a 70/80F replacing 10/20 F . H
